Technical Indicators Overview

Vantixs ships a comprehensive indicator library spanning classic technical analysis, ICT/SMC price action, and machine-learning models --- all available as drag-and-drop nodes in the visual pipeline builder.

What Are Indicators?

Technical indicators are mathematical calculations based on price, volume, or open interest. In Vantixs, every indicator is a self-contained node that you wire into your strategy pipeline. Indicators help identify:

Hybrid Execution Engine

Vantixs routes indicators to the fastest available engine automatically:

• Rust engine (23 indicators) --- common technical indicators and all crossover nodes. Processes ~50K bars/sec with zero Python overhead.
• Python engine (40 indicators) --- statistical, ML, ICT/SMC, and classic price action indicators powered by NumPy, SciPy, and XGBoost.

You never need to think about routing --- just drag a node onto the canvas and Vantixs picks the right engine.

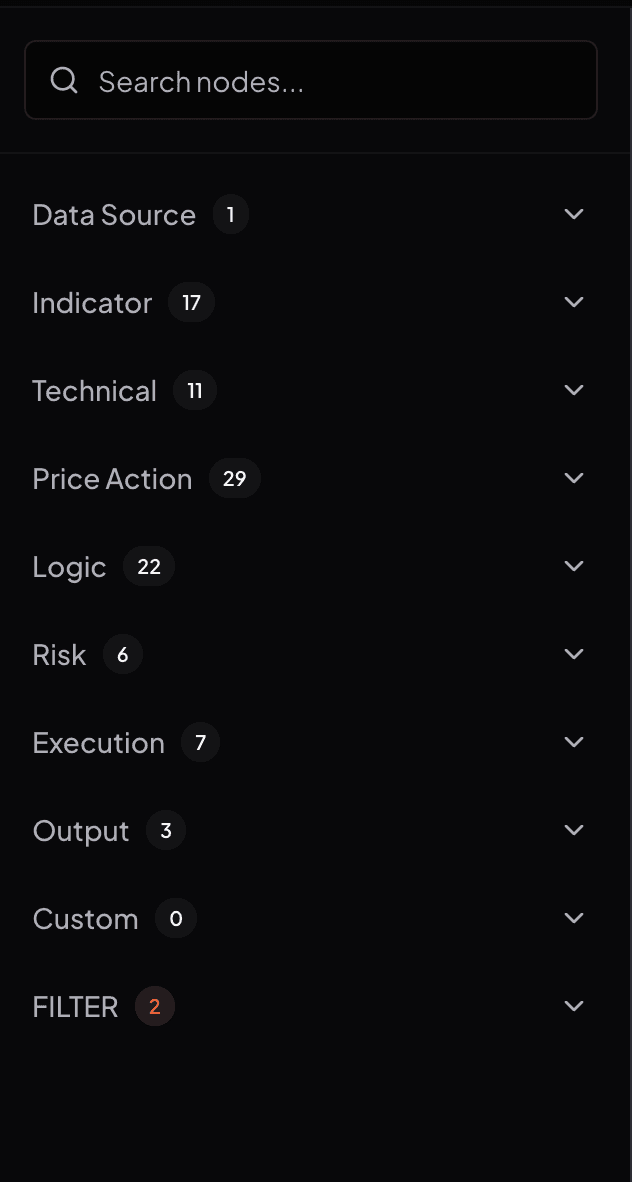

Indicator Categories

Zoom

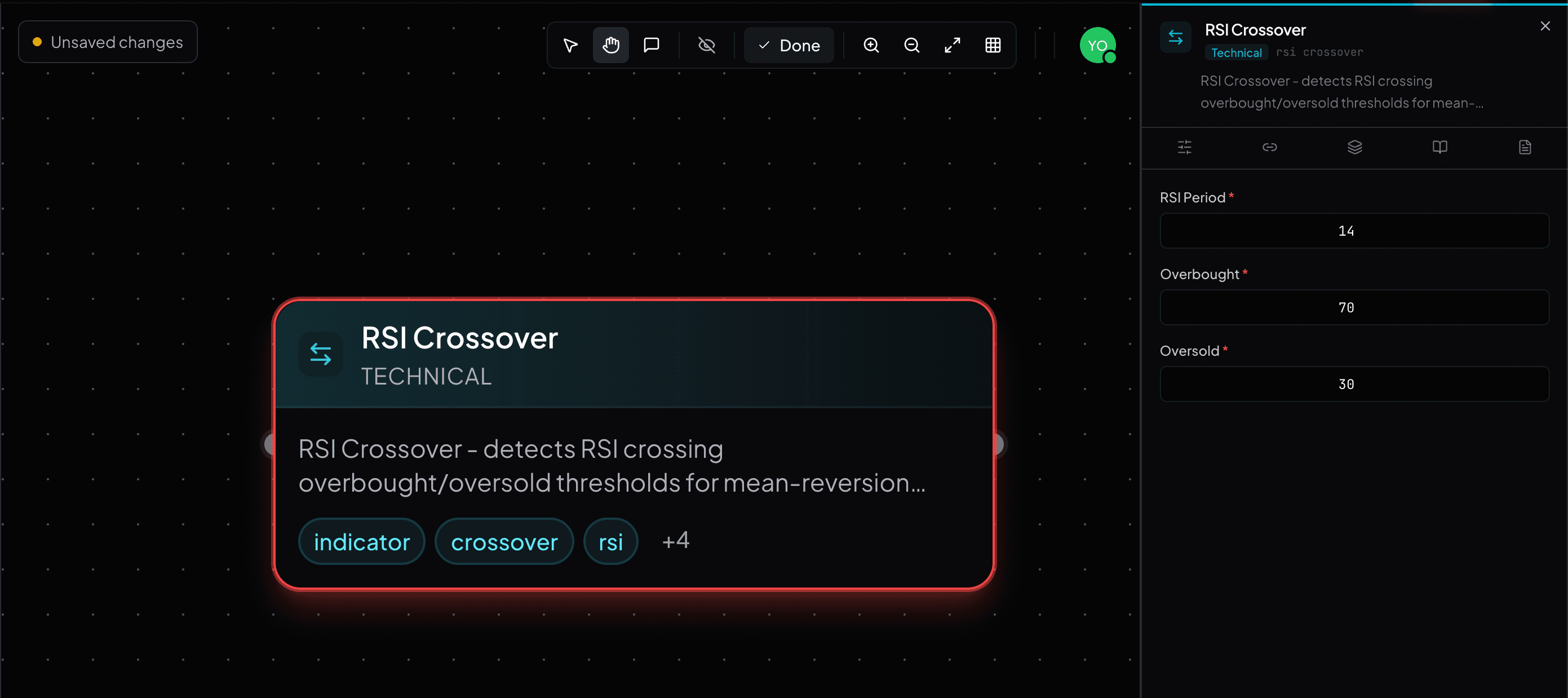

How Crossover Nodes Work

Crossover nodes are stateful --- they remember the previous bar's value and compare it to the current bar. This lets them fire a one-shot signal on the exact bar a crossover happens, rather than every bar the condition is true.

For example, an RSI Crossover configured with threshold 30 and direction "cross above" will:

1. Track RSI values bar-by-bar
2. Detect when RSI was below 30 on the previous bar and above 30 on the current bar
3. Emit a single BUY signal on that bar only

Zoom

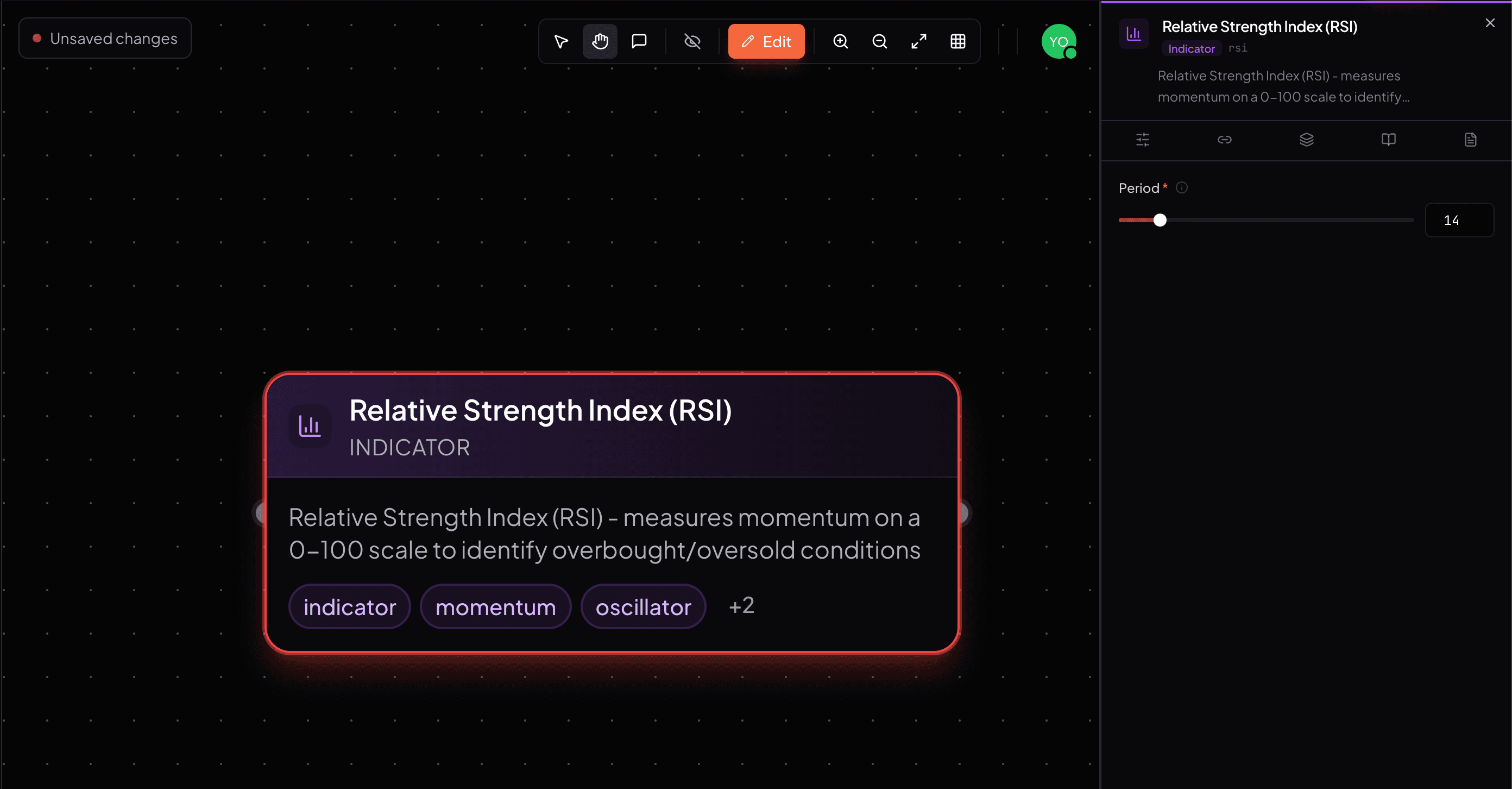

Using Indicators in Vantixs

Zoom

Indicator Combinations That Work Well

Combining indicators from different categories gives the most reliable signals. Here are proven combinations:

Trend + Momentum + Risk

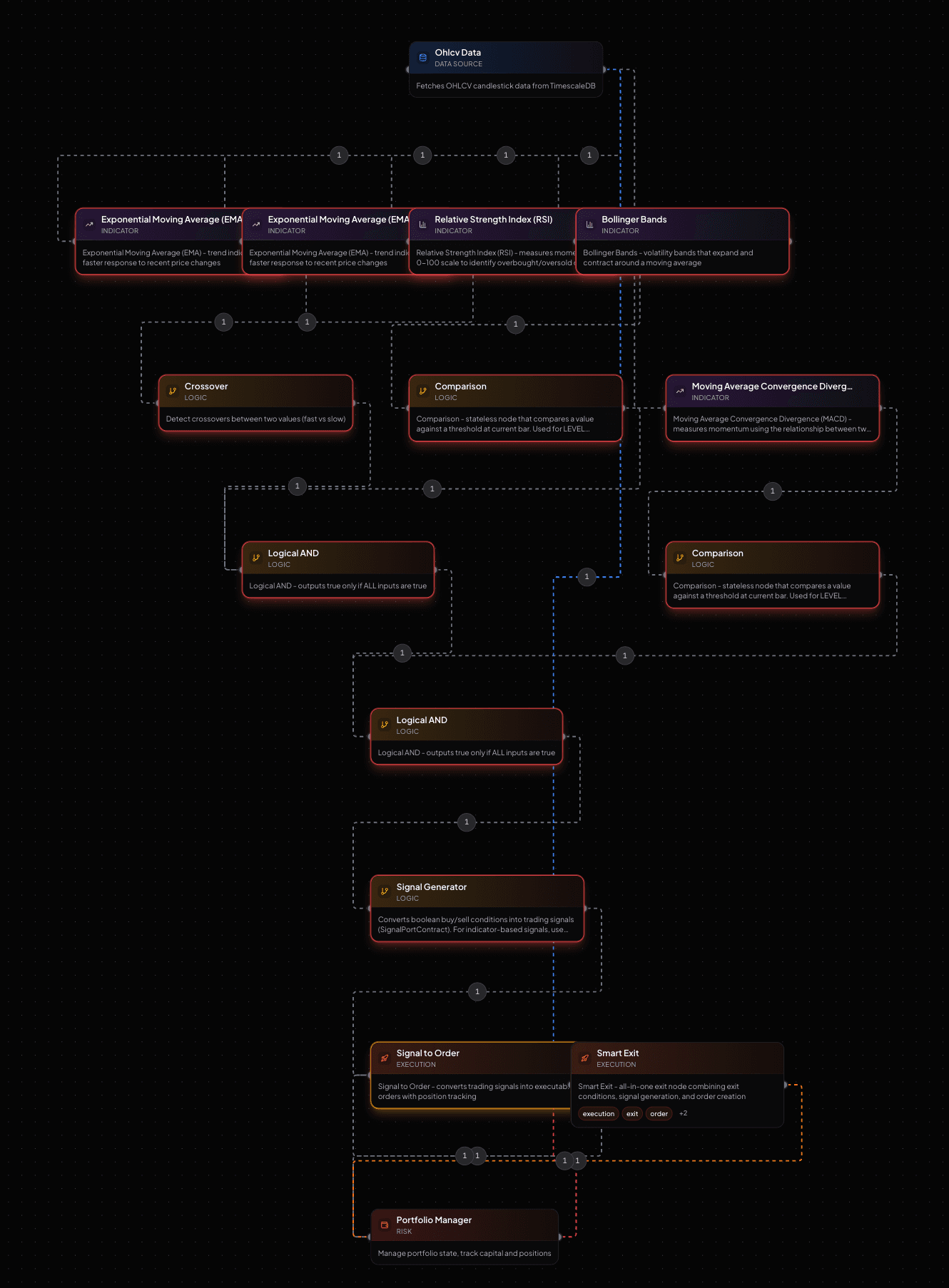

A bread-and-butter setup: EMA Crossover confirms trend direction, RSI filters overbought/oversold entries, and a Risk Manager node sizes positions.

Price Data --> EMA (fast) --|
                            |--> EMA Crossover --> Signal Generator --> Risk Manager --> Exit Signal
Price Data --> EMA (slow) --|
Price Data --> RSI ---------> RSI Crossover --|

ICT Institutional Setup

Kill Zone Filter gates entries to high-volume sessions, Fair Value Gap identifies imbalance zones, and Market Structure confirms trend via BOS/CHoCH.

Price Data --> Kill Zone Filter --|
Price Data --> Fair Value Gap ----|---> MTF Confluence --> Signal Generator
Price Data --> Market Structure --|

Volatility Breakout

Bollinger Bands detect compression, ATR sizes stops dynamically, and Volume Threshold confirms the breakout has participation.

Price Data --> Bollinger Bands --> Comparison (price > upper band) --|
Price Data --> Volume Threshold -----------------------------------|---> Signal Generator
Price Data --> ATR --> Exit Signal (trailing stop) ----------------|

ML Regime-Aware

Regime Detection switches between strategies: mean-reversion during ranging markets, trend-following during trending markets.

Price Data --> Regime Detection --> Comparison (regime == ranging) --> Mean Reversion --> Signal Generator
                               --> Comparison (regime == trending) --> EMA Crossover --> Signal Generator

Zoom

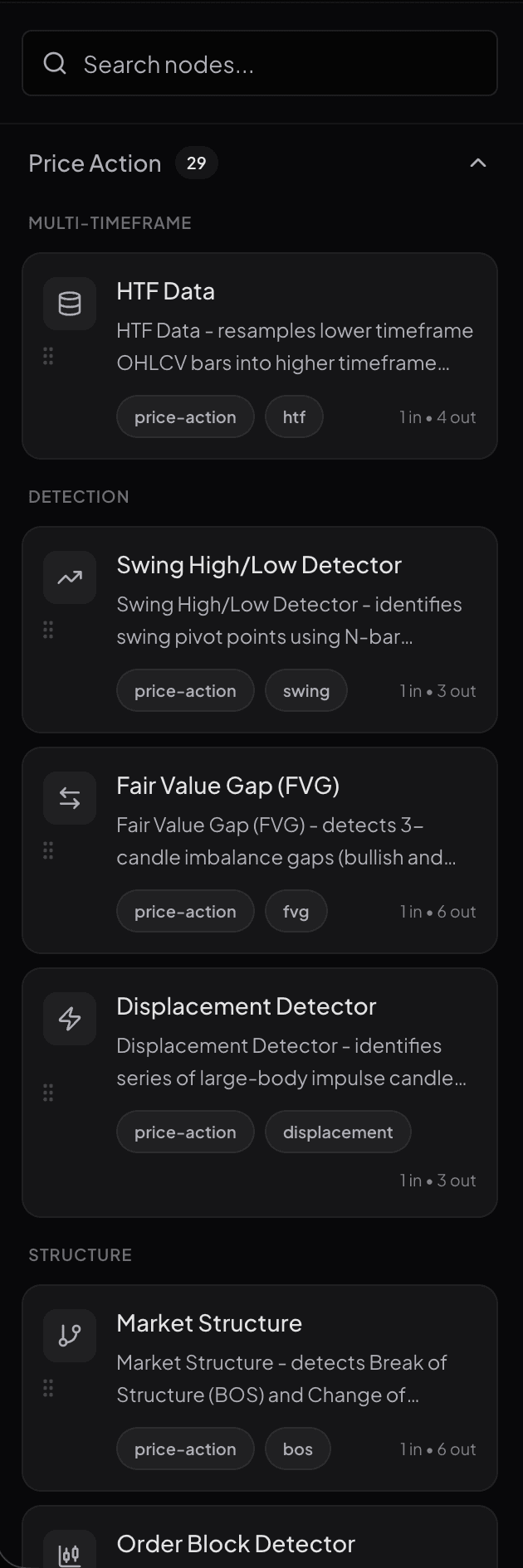

ICT / Smart Money Concepts Deep Dive

The ICT indicator suite is one of Vantixs's most powerful features. These nodes model institutional order flow and liquidity mechanics that retail platforms typically ignore.

Key Concepts

ICT Pipeline Example

A typical ICT strategy filters by session (Kill Zone), waits for a structural shift (CHoCH), and enters at a Fair Value Gap within the discount zone:

Price Data --> Kill Zone Filter (NY session) ----------|
Price Data --> Market Structure (detect CHoCH) --------|
Price Data --> Fair Value Gap -------> Premium/Discount Zone (discount only)
                                                       |---> MTF Confluence --> Signal Generator

Zoom

Best Practices

• Don't over-indicator: 2--3 complementary indicators from different categories is usually enough. Adding five momentum indicators just adds noise.
• Confirm with multiple timeframes: Use the MTF Confluence node to gate signals with higher-timeframe trend alignment.
• Understand the math: Know what each indicator measures so you don't duplicate signals (e.g., RSI and Stochastic both measure momentum).
• Use crossover nodes, not comparisons: Crossover nodes are stateful and fire once per event. Comparison nodes fire on every bar the condition is true.
• Backtest before paper trading: Verify indicator effectiveness on historical data. Vantixs processes ~50K bars/sec in the Rust backtest engine.
